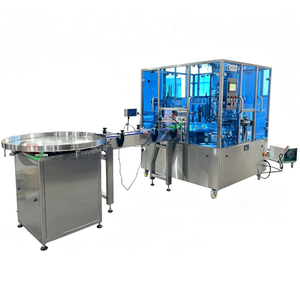

KIS-900-2 Automatic Rotary Type Yogurt Cup Filling Sealing Machine

KIS-900 Automatic Rotary Type Cup Filling Sealing Machine can be customized for products including liquid, paste, powdered, granule material in round, oval, square or rectangular plastic containers. Such as Yogurt, Milk, Cottage Cheese, Cheese and Dairy Products as well as Pasta Sauce, Bean Dips, Hummus, Salad Dressings, Desserts, Soups, Mayonnaise, Jelly, Pudding, Chocolate, Jam, Honey, Juice, Ketchup, butter, Cosmetic Cream, etc.
Quantity:
  • KIS-900
  • Chunlai

Chunlai's KIS-900-2 rotary type cup filling sealing machine offers a great value with filling speeds from 1600-2000 cups/hour and filling capabilities from 50-300ml(different from this can be customized). Rotary machines are a great choice for customers that have limited space or that don't require high production rates. This filling sealing machine is a great option for pilot programs, small businesses, business starters and market testing.



KIS-900-2 rotary type cup filling sealing machine is suitable for packaging a wide range of liquid, paste, granulated and powdered products into pre-formed containers of various size and shapes.

The machine can be used in a variety of applications for the food industry, such as sour cream, yogurt, cheese, butter, guacamole, salsa, mayonnaise, margarine, hummus, dip, salad dressings, seasoning, soup, chocolate, jelly, honey, jam, ketchup, chili sauce, coffee, dry products, cosmetic cream and more.



Depending on the output required, the KIS-900-2 rotary cup filling and sealing machine is designed for one cup or two cups per time. The filling units which can be combined different type fillers on a same machine.



Machine basic function include cup dispenser, filling, heat sealing, automatic ejection

Empty cup dispensing function: it can separate cups accurately, the technology which can avoid the cup damage and deforming.



Filling function: the filling system could be designed based on your product feature.

Liquid: gravity filling, easy for clean

Paste: piston filling, anti-drip, no splash and leakage, the filling system tool free disassemble design.

Granule: measuring cup, weighing

Powder: screw



Aluminum foil lids placing function: it make up by 180 rotate vacuum sucker and lids magazine, it can place the lid on the mold fast and accurately.



Sealing function: the sealing temperature can be 0-300 degree adjustment. Independent temperature controller for each sealing head



Automatic ejection system: it made up by cup lifting and pushing system, fast and stable.



Automation control system: it controlled by Mitsubishi PLC



Pneumatic system: it controlled with AirTac cylinder



Variable speed adjustment via speed controller arrange with inverter



Operation panel: Traditional Switches and Buttons for simple operation



Machine Frame: Stainless Steel in accordance with sanitation standard

Bottom Molds: Anodized Aluminum Alloy



Optional:

Operation panel: Touch Screen



Servo motor driving



Empty cup dispensing function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter into mold accurately.



Empty cup detecting function: no cup no filling or no cup machine stops



Filling: cup lifting function



Filling tank: mixing, level control, double jacket, CIP washing ball



Roll Film Storage Device

Blank Film Fixer: to calculate the film length of cup for saving the film cost

Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark

Color ribbon date printer for roll film



Automatic Capping System: put plastic cap after sealing



Safety protection: it is optional function, it make up by plexi glass plates, aluminium and stainless steel, has safety switches which protect the operator.

Laminar flow-HEPA filter unit



Out-feed conveyor



Modified Atmosphere Packaging (MAP)





Technical Data:

Model

KIS-900

KIS-900-2

Production Capacity

800-1000 cups/hour

1600-2000 cups/hour

Filling Range

50-300ml or   customized

Power

Single phase 220V, 3 phase 220V

3 phase 380V/400V/415V

50Hz/60Hz

Power

1 Kw

1.5Kw

Air consumption

0.6 mз/min

0.8 mз/min
