Chunlai KIS-900 Rotary Cup Filling Sealing Machine

Description

Chunlai KIS-900 rotary cup filling sealing machine will denest cups, fill, heat seal and eject. The KIS-900 can support small single serve cup and fill, seal and over cap at speeds of up to 13-16 cycles per minute or more! Rotary machines are a great choice for customers that have limited space or that require low or medium production rates. This filling sealing machine is a great choice for start business and market testing.


FAQ

Machine is customized, before quoting, we need to know following information:
1.What’s the cup diameter and height?
2.What’s filled? How much ml/gram?
3.Seal with roll film or pre-cut foil?
4.If roll film sealing, need with photocell sensor or film length counting?
5.Need color ribbon date printing for roll film or not?
6.Need with capping or not?
7.Filling tank with mixing or not? With level control? Double jacket or not?

Application

The equipment is widely used in the packaging of products in the food, beverage, dairy, and daily chemical industries such as juice, jelly, chocolate, salad, dressing, pudding, chili sauce, instant noodles, tofu, hummus, jam, mayonnaise, butter, yogurt, honey, facial cream, etc.
Product Workflow

Cup drop system

Cup drop system: It is composed of cup drop bracket, track, push cylinder and other components, with high accuracy and fault tolerance;

Cup drop system

Filling system: The filling system can be designed according to your product characteristics.
Liquid: self-flow filling, easy to clea.
Paste: Piston-type filling, anti-drip, no splash, easy to disassemble and clean the filling.
Granules: measuring cup, weighing.
Powder: Screw;

Cup drop system

Aluminum foil lids placing function: it make up by 180 rotate vacuum sucker and lids magazine, it can place the lid on the mold fast and accurately;

Cup drop system

Sealing system: including heating constant temperature control parts, temperature sensor, sealing device, heat sealing plate and heat sealing head, pneumatic sealing movement execution parts, and the equipment is equipped with an independent temperature control heat sealing system;

Cup drop system

Cup delivery system: it is composed of cup top mechanism, cup delivery rack, conveyor belt mechanism, etc.;

Cup drop system

Electrical control system: It is composed of control circuit, power supply circuit, electrical protection, safety emergency stop device, etc. Adopt Japan's Mitsubishi PLC programmable control system, Japan's IDEC switch;

Cup drop system

Pneumatic system: It is composed of Taiwan AirTac cylinders, electronically controlled reversing valves, air circuit protection, etc.;

Cup drop system

Equipment material: the equipment adopts thick-walled 304 stainless steel frame material and high-quality corrosion-resistant aluminum plate structure.

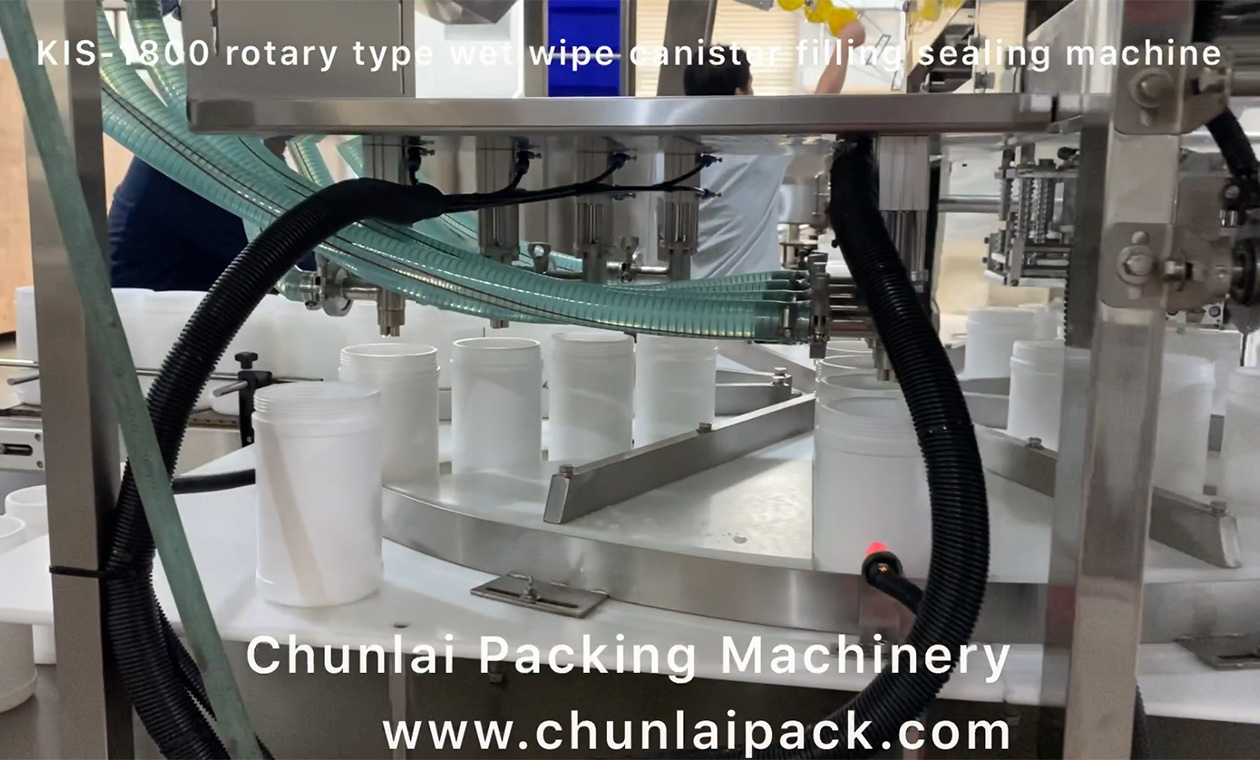

Rotary Wet Wipes Can Filling and Sealing Machines

Description

Rotary Wet Wipes Can Filling and Sealing Machines offer a competitive filling and sealing solution for liquid, semi-liquid and pasty food products.
Rotary type automatic filling sealing machine is a medium-capacity filling and sealing machine, which can reach 800-3000 bottles per hour;
This type filling sealing machine is in a small size, which is suitable for customers with site restrictions. In addition, the filling sealing machine can connect with other production line very easily with conveyor feed in and feed out.


FAQ

Machine is customized, before quoting, we need to know following information:
1.What’s the can diameter and height?
2.If need with filling, how much ml/gram?
3.Need with capping, labeling or not?

Application

The equipment is widely used in the packaging of products in the food, beverage, dairy, and daily chemical industries such as chili sauce, jam, mayonnaise, butter, salad, dressing, hummus, yogurt, honey, wet wipes, detergent, facial cream, etc.
Product Workflow

Cup drop system

The action and control parameters of each component of this model can be adjusted by the Japanese Mitsubishi Programmable Logic Controller (PLC). Compared with the traditional relay circuit, it is set and modified by the PLC. The control is convenient and reliable, precise and flexible, and the failure rate is low;

Cup drop system

 Main function: automatically canisters feed in, filling liquid, heat sealing & cutting aluminum film, waste film rewinding, canisters feed out;

Cup drop system

 The shape of the mold can be customized according to the canister style selected by the customer;

Cup drop system

 Parameters such as sealing pressure, temperature and time can be accurately controlled to ensure that the product sealing achieves the desired effect;

Cup drop system

 Independent sealing system, each sealing heating head is individually controlled, the overall sealing effect is better;

Cup drop system

 The main frame is made of SUS304 food grade stainless steel, and the surface of the equipment is easy to clean, safe and hygienic.

MS-1 Semi Automatic Rotary Type K-cup Filling Sealing Machine

Description

This machine rotary table rotates by the operator. Filling and sealing application are carried out automatically. Placing cups, lids and the taking ready cups from holes are carried out by the operator. Or without sealing, pre-cut foil placing and sealing automatically. It can be customized 4 or 6 position. Production capacity is about 300-400 cups per hour.


FAQ

1.Machine can be customized 4 position or 6 position
2.Pre-cut foil sealing or roll film sealing
3.With filling or without filling

Application

The equipment is widely used in the packaging of products in the food, beverage, dairy, and daily chemical industries such as juice, jelly, chocolate, salad, dressing, pudding, chili sauce, instant noodles, tofu, hummus, jam, mayonnaise, butter, yogurt, honey, facial cream, etc.

4 position

 Function:
1.put cup by hand
2.put pre-cut foil by hand
3.turn rotary table by hand
4.automatic filling liquid
5.automatic sealing
6.take cup out by hand

6 position

 Function:
1.put cup by hand
2.put pre-cut foil by hand
3.turn rotary table by hand 4.piston filling
5.automatic sealing
6.take cup out by hand

6 position

 Function:
1.put cup by hand
2.turn rotary table by hand
3.automatic roll sealing & cutting 4.take cup out by hand
The Composite Paper Canister Sealing Machine

Description

The Composite Paper Canister Sealing Machine are automated assembly-line packaging systems for streamlining the packaging process to improve efficiency and save on labor operation costs. They are very common in food industries and other product varieties.


Application

KIS-1800 Composite Paper Canister Sealing Machine applicable for sealing of different size paper cans, simple in operation, and it is an ideal packing equipment of food, beverage, pharmaceutical, chemical industry and other industries. It's widely used for crisp puffed food packing like potato chips, French fries, banana chips, dried durian, dried mango, apple slices, salt, nuts, facial tissue, etc..

Product Workflow

Cup drop system

Manually put paper canisters to the sealing machine, the machine sucker will pick up the lid and the lid is attached to the can’s top by the heat sealing head (sealing paper aluminum lid: to ensure that the paper aluminum lid can be accurately positioned to the canister, sufficient sealing temperature and sealing time), sealed canister will feed out;

Cup drop system

The machine can be customized with conveyor feed in and conveyor feed out.

Working Process Of Rotary Filling Sealing Machines

Description

Rotary Bottle Filling and Sealing Machines offer a competitive filling and sealing solution for liquid, semi-liquid and pasty food products.
Rotary type automatic filling sealing machine is a medium-capacity filling and sealing machine, which can reach 800-3000 bottles per hour.
This type filling sealing machine is in a small size, which is suitable for customers with site restrictions. In addition, the filling sealing machine can connect with other production line very easily with conveyor feed in and feed out.


FAQ

Machine is customized, before quoting, we need to know following information:
1.What’s the can diameter and height?
2.If need with filling, how much ml/gram?
3.Need with capping, labeling or not?


Application

The equipment is widely used in the packaging of products in the food, beverage, dairy, and daily chemical industries such as chili sauce, jam, mayonnaise, butter, salad, dressing, hummus, yogurt, honey, wet wipes, detergent, facial cream, etc.

Product Workflow

Cup drop system

The action and control parameters of each component of this model can be adjusted by the Japanese Mitsubishi Programmable Logic Controller (PLC). Compared with the traditional relay circuit, it is set and modified by the PLC. The control is convenient and reliable, precise and flexible, and the failure rate is low;

Cup drop system

Main function: automatically bottles feed in, filling liquid, heat sealing & cutting aluminum film, waste film rewinding, canisters feed out ;

Cup drop system

The shape of the mold can be customized according to the canister style selected by the customer;

Cup drop system

Parameters such as sealing pressure, temperature and time can be accurately controlled to ensure that the product sealing achieves the desired effect;

Cup drop system

Independent sealing system, each sealing heating head is individually controlled, the overall sealing effect is better;

Cup drop system

The main frame is made of SUS304 food grade stainless steel, and the surface of the equipment is easy to clean, safe and hygienic.
