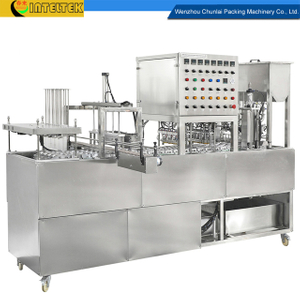

4 Cups per Time Water Cup Washing Filling Pre-cut Aluminum Foil Lid Sealing Machine

GF series Cup Washing Filling and Sealing Machine can be customized for products including liquid, paste material in round, oval, square or rectangular plastic containers. Such as Water, Yogurt, Milk, Juice, etc. The Cup Washing Filling and Sealing Machine is capable of using roll film or pre-cut foil seal material.
Availability:
Quantity:
  • GF-4

  • Chunlai

GF Series Cup Washing Filling and Sealing Machine is specially customized for water cup packing. The machine can be used in a variety of applications for the beverage industry, such as pure water, mineral water, juice, milk, yogurt and more.



Depending on the output required, the GF Series Cup Washing Filling and Sealing Machine can be designed for 2 lines, 4 lines, 6 lines, 8 lines, 10 lines per time or more.



Machine basic function include cup de-nesting, washing, filling, heat sealing, automatic feed-out.

Machine Specifications:

Cup De-nesting System



Washing System:



Automatic Filling System: the filling quantity and speed could be adjusted. The filling system could be designed based on product feature.



Automatic Sealing System: independent temperature controller

1st sealing: heat sealing

2nd sealing: could be designed in Embossing sealing



Eye Mark Auto Correction

Collocating with a photocell sensor of film pattern mark



Automatic Cutting System: waste film automatic rewinding



Product Automatic Feed-out System: with conveyor



Operation Panel:

A-Type: Traditional Switches and Buttons for simple operation

B-Type: Touch Screen



Variable speed adjustment via speed controller arrange with inverter

Additional emergency stop switch for safety protection







Model

GF-2

GF-4

GF-6

GF-8

GF-10

Production capacity

1600-2000   cups/h

3000-4000   cups/h

5000-6000   cups/h

7000-8000   cups/h

9000-10000   cups/h

Filling range

50-300ml or customized

Voltage

Single phase 220V, 3 phase 220V

3 phase 380V/400V/415V

50Hz/60Hz

Power

2KW

3.5Kw

5 Kw

6 Kw

7.5 Kw

Air consumption

0.6 mз/min

0.8 mз/min

1 mз/min

1.2 mз/min

1.6 mз/min

Dimension

2400×650×1750 mm

2800×710×1700 mm

2800×850×1700mm

3000×900×1700mm

3000×1000×1700mm

Weight

600Kg

700Kg

800Kg

1000Kg

1200Kg





























Machine Frame: Stainless Steel

Bottom Molds: Aluminum Alloy

PLC: Mitsubishi

Cylinder: AirTac

Solenoid valve: Mindmand

Switch: IDEC



Operation panel: Touch Screen



Servo motor driving



Intelligent design in the case of no cup, the machine will not automatically fill and seal.



Empty cup de-nesting function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter into mold accurately.



Empty cup detecting function: no cup no filling or no cup machine stops



Filling: cup lifting function



Filling tank: level control, CIP washing ball



Foil Storage Device

Foil sensor for detect the film when it ran out, the machine will stop automatically



Blank Film Fixer: to calculate the film length of cup for saving the film cost

Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark

Color ribbon date printer for roll film



Automatic Capping System: put plastic cap after sealing



Safety protection: it is optional function, it make up by plexi-glass, aluminium and stainless steel, has safety switches which protect the operator.
