KIS-900
Chunlai

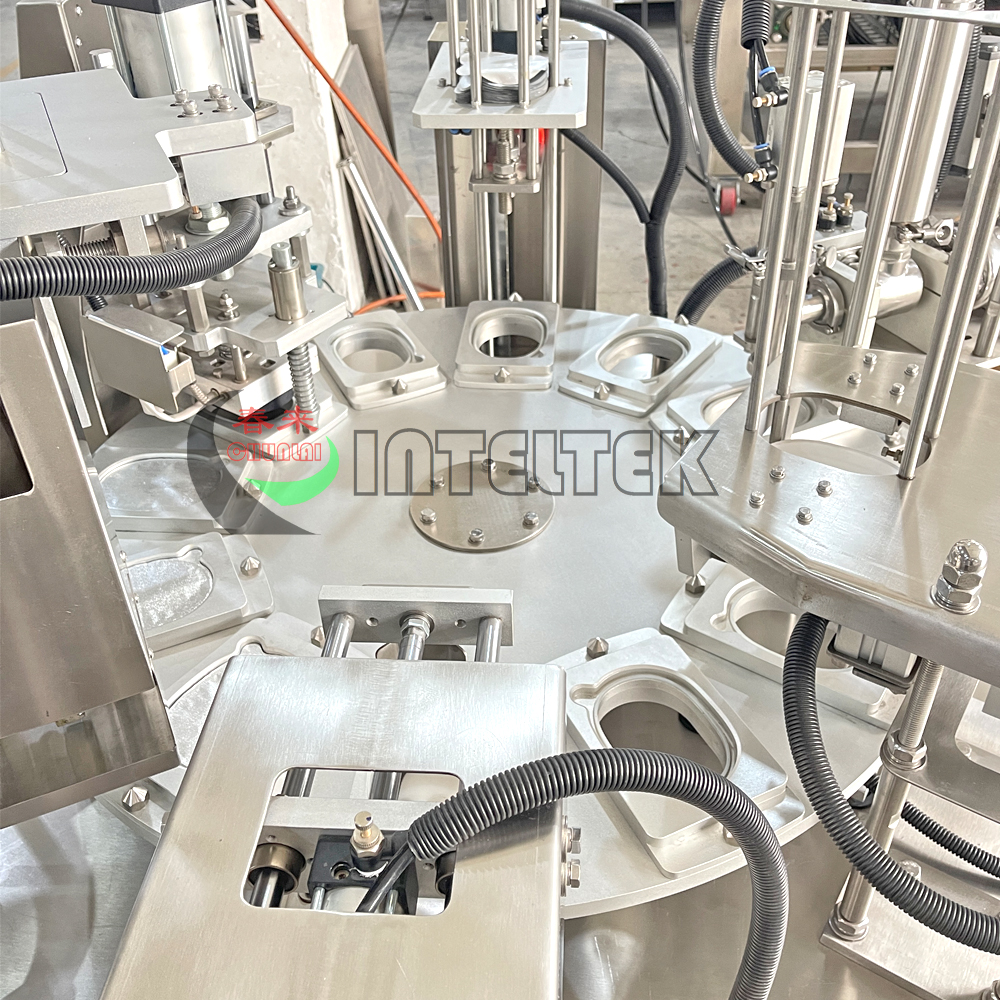

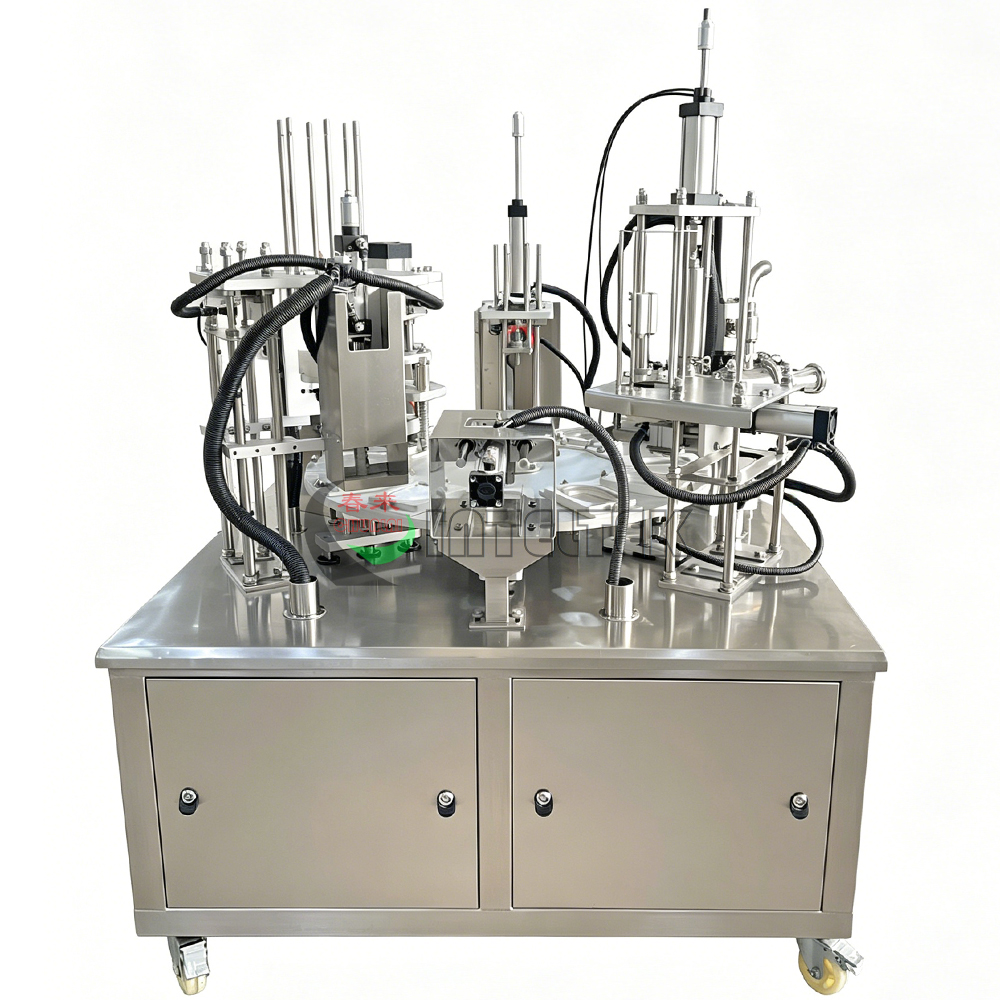

Rotary Type Margarine Cup Filling Sealing Capping Machine is a fully automatic packaging machine designed for filling margarine, butter, spreads, and edible fats into preformed plastic cups or tubs. The rotary indexing table moves containers through multiple stations including cup feeding, filling, foil sealing, lid placing, and product discharge. This design provides high accuracy, stable operation, and efficient production.

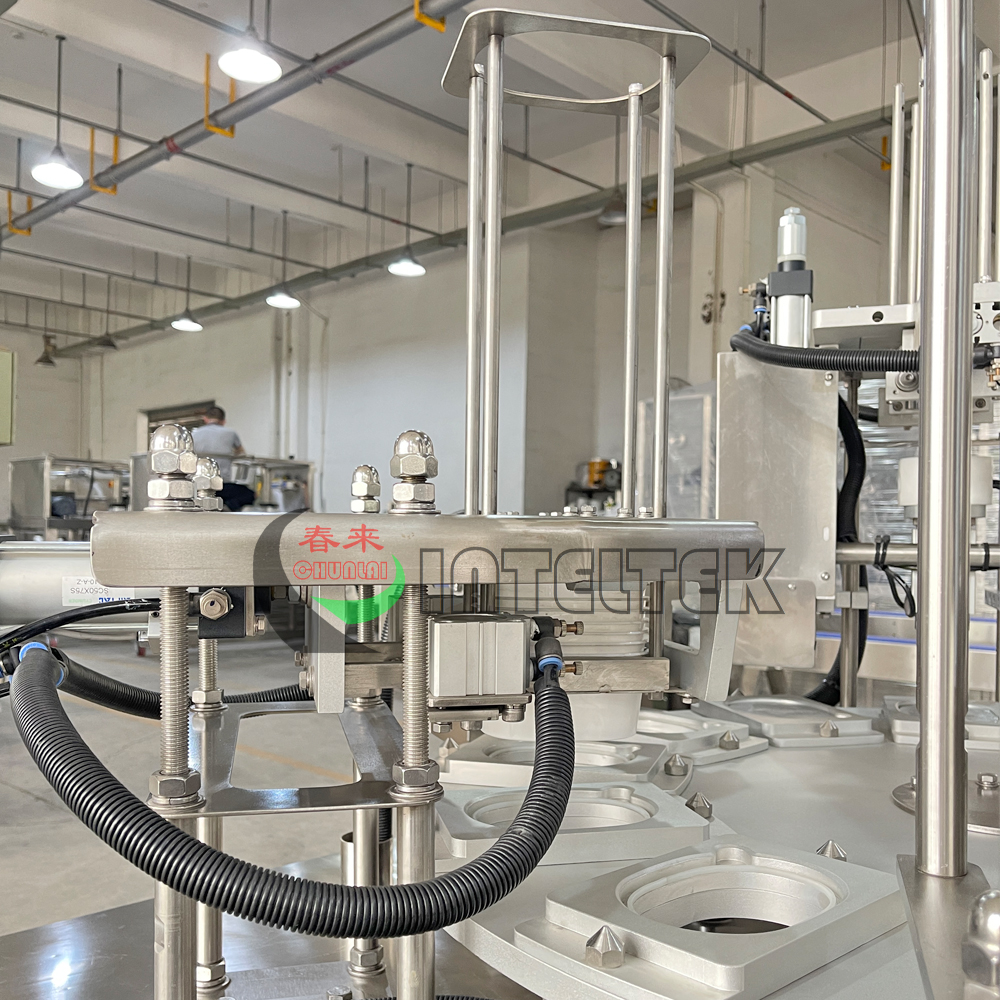

Cup/Tub Feeding
Cup Detection

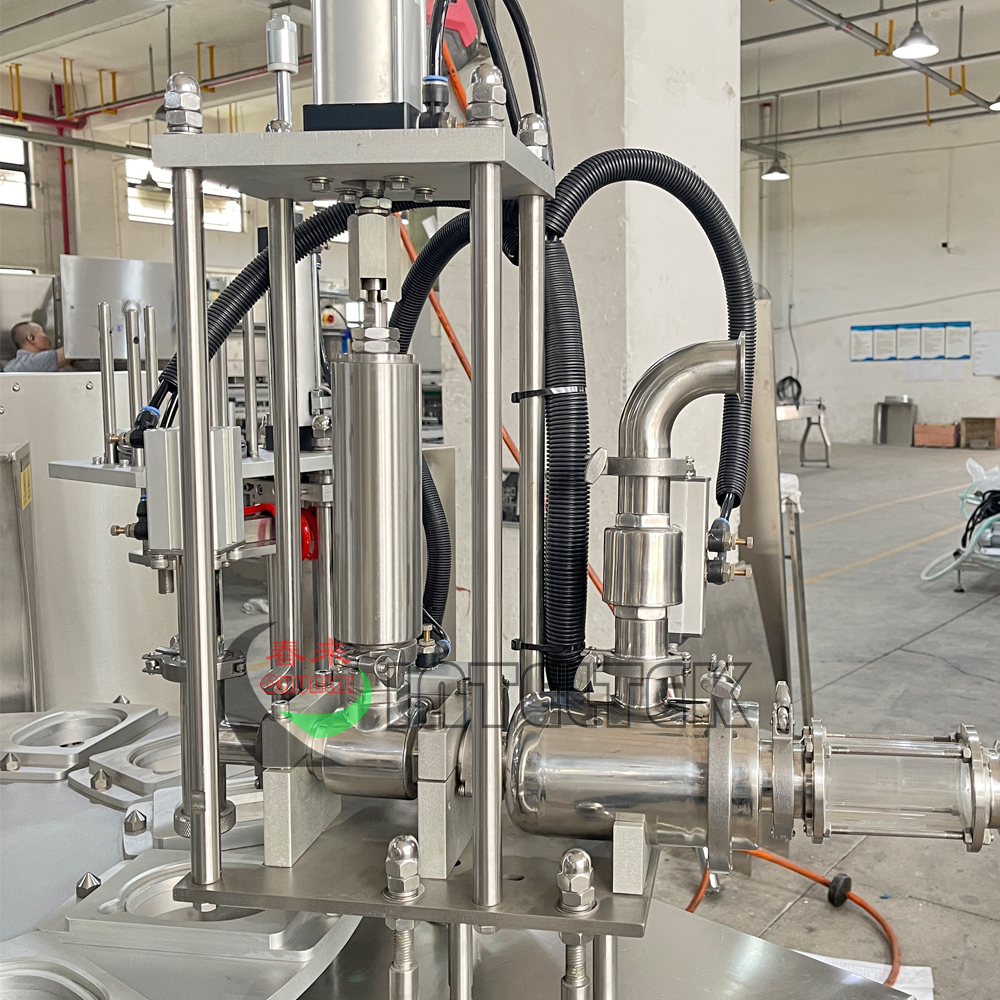

Volumetric Margarine Filling
Nitrogen Flushing (Optional)
Aluminum Foil Placement

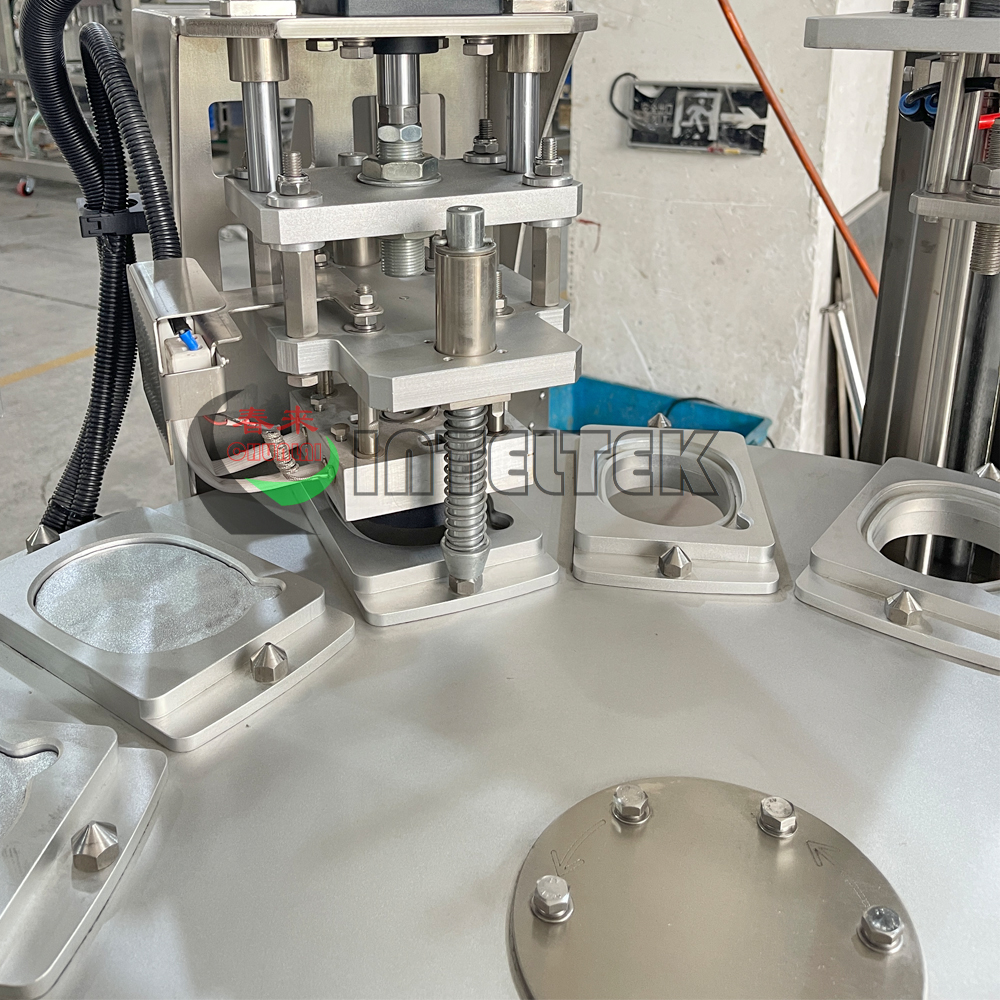

Heat Sealing
Plastic Lid Feeding

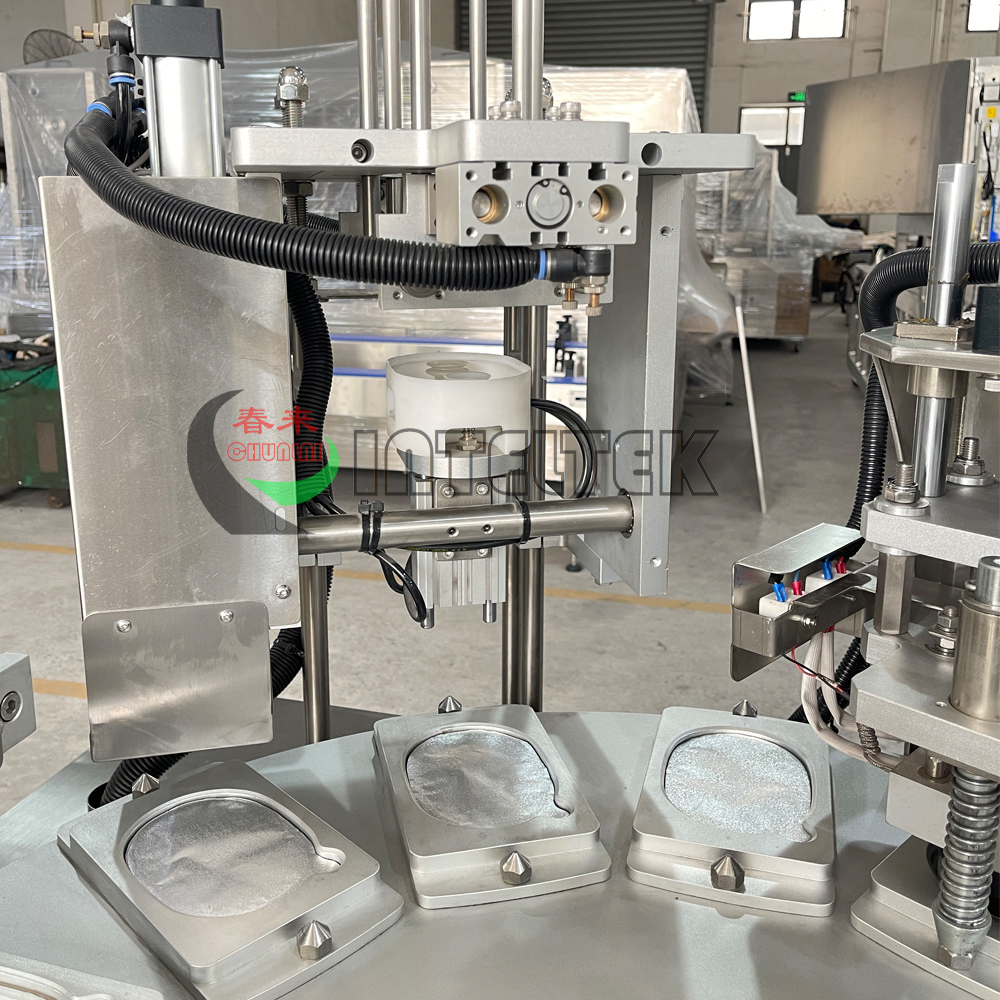

Lid Pressing/Capping
Date Coding (Optional)
Finished Product Discharge
Rotary indexing table design
Accurate volumetric filling system
Automatic foil sealing and lid capping
Suitable for round, square, and rectangular tubs
PLC and touchscreen control
Stainless steel SUS304 construction
No-cup-no-fill safety system
Optional UV sterilization and inkjet coding system
Quick changeover for different cup sizes and volumes
Item | Specification |
|---|---|
Product | Margarine, Butter, Spreads |
Filling Range | 100–1000 g |
Capacity | 12–35 cups/min |
Filling Method | Volumetric Piston/Pump |
Cup Shape | Round, Square, Rectangular |
Sealing Material | Aluminum Foil |
Lid Type | PP Plastic Lid |
Control System | PLC + HMI Touch Screen |
Material | SUS304 Stainless Steel |
Power Supply | 220V/380V, 50/60Hz |
Typical rotary machines for margarine packaging achieve outputs from approximately 10 cups/min up to 30 strokes/min depending on cup size and machine configuration.
The Rotary Type Margarine Cup Filling Sealing Capping Machine is an automatic packaging solution specially designed for margarine, butter, and spread products. The machine integrates cup feeding, volumetric filling, foil heat sealing, plastic lid placement, capping, coding, and product discharge into a single rotary indexing system. It ensures high filling accuracy, excellent sealing integrity, hygienic production conditions, and reliable performance for dairy and edible fat packaging applications. The machine is suitable for various cup sizes and provides efficient production with minimal labor requirements.
Rotary Margarine Cup Filling Sealing Capping Machine for automatic filling, foil sealing, and lid capping of margarine, butter, and spread products in plastic cups and tubs. High-speed rotary design, accurate filling, hygienic construction, and flexible cup size changeover make it ideal for modern dairy and food processing plants.
