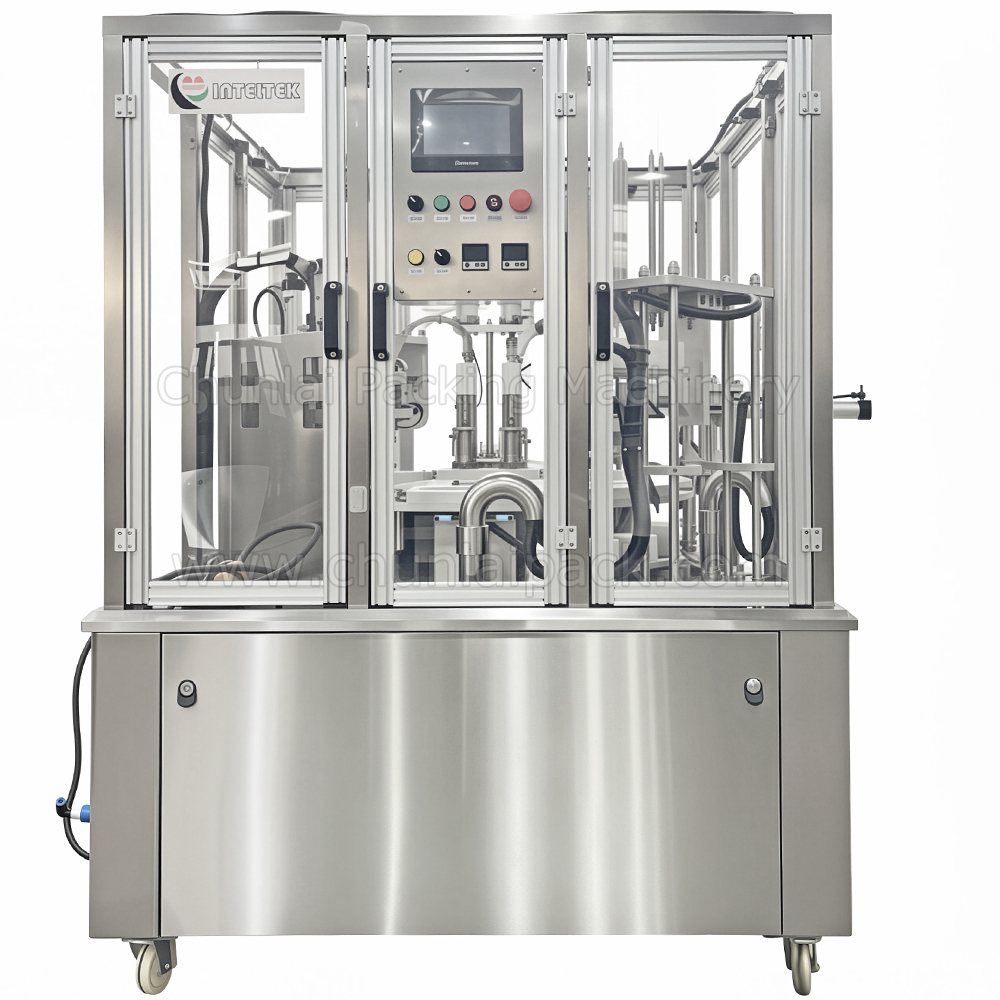

KIS-900 Automatic Rotary Type Salad Cup Filling Sealing Capping Machine

KIS-900 Automatic Rotary Type Cup Filling Sealing Machine can be customized for products including liquid, paste, powdered, granule material in round, oval, square or rectangular plastic containers. Such as Yogurt, Milk, Cottage Cheese, Cheese and Dairy Products as well as Pasta Sauce, Bean Dips, Hummus, Salad Dressings, Desserts, Soups, Mayonnaise, Jelly, Pudding, Chocolate, Jam, Honey, Juice, Ketchup, butter, Cosmetic Cream, etc.
Availability:
Quantity:
  • KIS-900

  • Chunlai

Chunlai's KIS-900 Automatic Rotary Type Salad Cup Filling Sealing Capping Machine is a compact and versatile packaging solution designed for automatic filling, sealing, and capping of salad cups and a wide range of food products including hummus, dipping sauces, yogurt, desserts, and ready-to-eat meals. Built with a rotary indexing system, this machine efficiently completes the full process of cup denesting, precise filling, heat sealing, optional vacuum, capping, and automatic discharge, ensuring hygienic and consistent packaging. It supports multiple product types such as liquids, pastes, granules, and powders by integrating different filling systems like gravity fillers, piston fillers, auger fillers, or volumetric dosing units.

With a production capacity typically ranging from 800 to 2000 cups per hour and a filling range of approximately 50–300 ml (customizable), the KIS-900 is ideal for small to medium production lines, pilot projects, and startups requiring flexibility and efficiency in a limited space.  The machine features PLC control (Mitsubishi), adjustable sealing temperature (0–300°C), roll film sealing with automatic cutting and rewinding, and optional functions such as MAP (gas flushing), date coding, and HEPA laminar flow protection to meet higher hygiene standards.

Constructed from food-grade stainless steel (SS304), the KIS-900 ensures durability, easy cleaning, and compliance with food safety requirements. Its modular design allows quick changeover between different cup sizes and product types, making it a reliable choice for manufacturers of fresh salads, cold meals, sauces, dairy products, and snack cups. Overall, the KIS-900 delivers a balance of automation, flexibility, and cost-efficiency, helping producers improve productivity, reduce labor, and maintain consistent packaging quality.




Model

KIS-900

KIS-900-2

Production Capacity

800-1000 cups/hour

1600-2000 cups/hour

Filling Range

50-300ml or   customized

Power

Single phase 220V, 3 phase 220V

3 phase 380V/400V/415V

50Hz/60Hz

Power

1 Kw

1.5Kw

Air consumption

0.6 mз/min

0.8 mз/min


Machine Frame: Stainless Steel

Product contact part: 304 stainless steel

PLC: Mitsubishi

Cylinder: AirTac

Solenoid valve: Mindmand

Switch: IDEC


Operation panel: Touch Screen



Servo motor driving

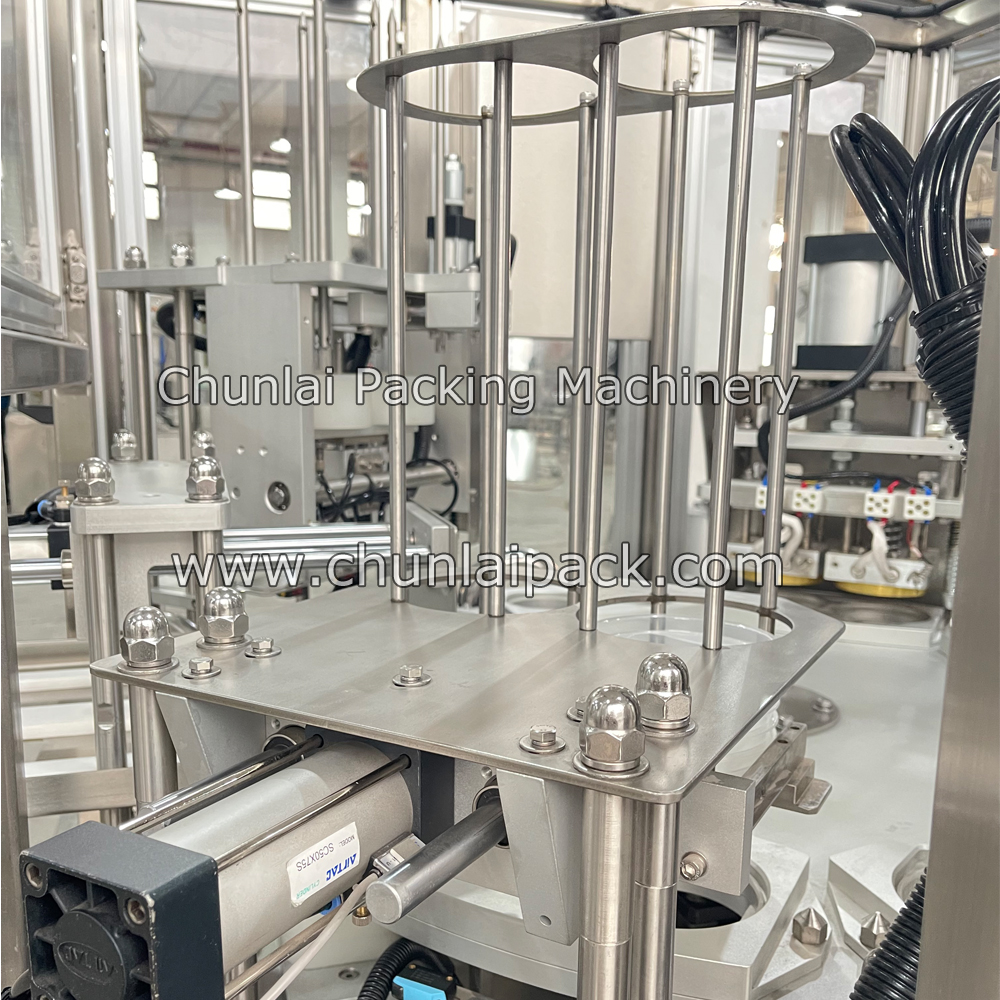

Empty cup dispensing function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter into mold accurately.



Empty cup detecting function: no cup no filling or no cup machine stops



Filling: cup lifting function



Filling tank: mixing, level control, double jacket, CIP washing ball



Roll Film Storage Device

Blank Film Fixer: to calculate the film length of cup for saving the film cost

Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark

Color ribbon date printer for roll film



Automatic Capping System: put plastic cap after sealing



Safety protection: it is optional function, it make up by plexi glass plates, aluminium and stainless steel, has safety switches which protect the operator.

Laminar flow-HEPA filter unit



Out-feed conveyor



Modified Atmosphere Packaging (MAP)


hummus cup seal cap

roll film seal cap

vesa cup

pre-cut lid seal

cheese hummus cup 2

plastic cap snap
