Automatic Carton Packing Line

Quantity:
  • Chunlai

The system consists of carton erector & bottom sealer, automatic carton sealer, automatic strapping machine, 90 degree push conveyor and conveying frame, which has the function of continuous automatic carton open-bottom seal-fill-uppen seal and multi-belt strapping, and it not only takes up less room but also reduces the packing cost as well. It is full automatic control and reliable working, convenient operation and simple maintenance while, all machine can be used separately.

◆ CES5050 Carton Erector & Bottom Sealer  1unit

Carton Size

L200~450mm/W150~400mm/H100~350mm

Table height

Min.H600mm Max.H720mm

Speed

1-10 box/min

Dimension

L2000×W1900×H1450mm

Power supply

220V/380V 50/60HZ

Air source

>500L/min、0.4~0.8 MPa

Tape

W48mm-W60-75mm×L1000

Machine weight

NW-400kg   GW-550kg


◆ RCM/D  Motor-drive Roller Conveyor  1unit


◆ FX-AT5050 Automatic Top Flap Carton Sealer  1unit

Conveyor Speed

16m/min

Max.Packager Size

W500×H500mm

Min. Packager Size

W120×H120mm

Power Supply

110V,220-240V/50-60Hz

Power Consumption

240W

Width Of  Tape

36mm,48mm,60mm

Machine Size

1780×950×1400mm

Machine Weight

240kg


◆ RC2M/B  Belt-drive Roller Conveyor  1unit


◆ More Longer Motor-drive Roller Conveyor
◆ Automatic Belt-drive Strapping Machine

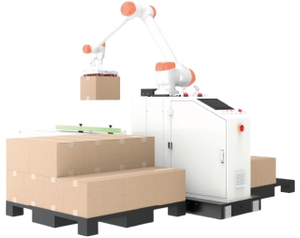

◆ Automatic Palletizer
◆ Automatic Pallet Stretch Wrapping Machine

◆ AFB Automatic Carton Filler

Power supply

220V/50Hz

Power

1.5KVA

Speed

5-10 box/min

Use gas source

400L/min

Machine size

1500×1200×2600mm

Machine weight

400kg

◆ AP8060B Automatic Strapping Machine With Belt-drive  1unit

 Strapping Tension

 40-600N adjustable

 Strapping Speed

 2.18Sec./Strap

 Strap Width

 9,12,15mm

 Arch Size

 800×600mm

 Power Supply

380V/50-60Hz,220V

 Power Consumption

 0.7KVA

 Machine Size

 1100×600×1540mm

 Machine Weight

  200kg


◆ RC1M/V 90 Degree Push Conveyor  1unit


◆ RC2M/B  Belt-drive Roller Conveyor  1unit


◆ AP8060A  Automatic Strapping Machine  1unit


◆ RC2M  Non-drive Roller Conveyor
