How to Pack Macaroni in Cups and Seal Them

Packaging macaroni in cups is a convenient and efficient solution for ready-to-cook meals, instant pasta products, and retail food packaging. An automatic cup filling and sealing machine ensures accurate filling, hygienic packaging, and a secure seal that protects the product during transportation and storage. This packaging method is widely used by food manufacturers to improve production efficiency and deliver attractive, consumer-friendly products.

Step 1: Cup Feeding

The process begins with automatic cup denesting, where empty paper or plastic cups are separated and placed into holders on the packaging machine. The cups are accurately positioned to ensure smooth filling and sealing throughout the production process.

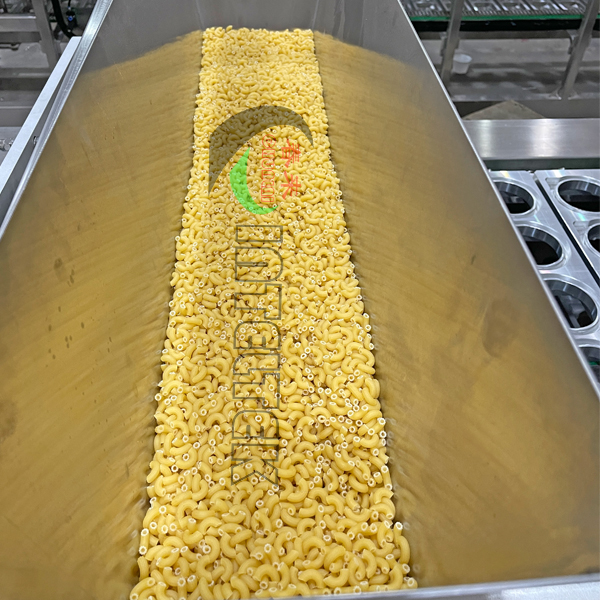

Step 2: Macaroni Filling

Pre-weighed or automatically measured macaroni is dispensed into each cup using a multi-head weigher, counting system, or volumetric cup filler, depending on the product type and required accuracy. The filling system ensures consistent weight while minimizing product breakage.

Step 3: Seasoning Sachet or Ingredient Adding (Optional)

For instant macaroni products, the machine can automatically place one or more seasoning sachets into each cup. Additional ingredients such as dried vegetables, cheese powder, spices, or sauce packets can also be added to create complete ready-to-cook meal kits.

Step 4: Cup Rim Cleaning

Before sealing, the machine removes any macaroni pieces or dust from the cup rim using an air blowing or vacuum cleaning system. A clean sealing surface is essential for producing a strong, leak-proof seal.

Step 5: Heat Sealing

A pre-cut aluminum foil lid or roll film is automatically placed over each filled cup. The sealing station applies controlled heat and pressure to create a secure, airtight seal that protects the macaroni from moisture, contamination, and external damage while extending shelf life.

Step 6: Date Coding and Inspection

After sealing, each cup is printed with the production date, expiration date, and batch number. Optional vision inspection or checkweighing systems can verify seal quality and filling accuracy before the products continue to the next stage.

Step 7: Cartoning and Final Packaging

The sealed macaroni cups are transferred to an automatic cartoning machine, where they are packed into paper cartons for retail display and transportation. The cartons are then sealed, labeled, and prepared for palletizing and shipment.

Typical Packaging Line

Cup Denester → Macaroni Filling → Seasoning Sachet Adding → Cup Rim Cleaning → Heat Sealing → Date Coding → Inspection → Cartoning

Advantages of Automatic Macaroni Cup Packaging

• High-speed, fully automatic production

• Accurate filling with minimal product waste

• Hygienic and food-safe packaging

• Strong, airtight seals for extended shelf life

• Easy integration with weighing, seasoning, and cartoning systems

• Suitable for paper cups and plastic cups of various sizes

An automatic macaroni cup filling and sealing machine is the ideal solution for manufacturers producing instant pasta, ready-to-cook meals, and snack products. By integrating cup feeding, filling, sealing, and cartoning into one efficient production line, manufacturers can increase productivity, reduce labor costs, and deliver high-quality packaged products to the market.
