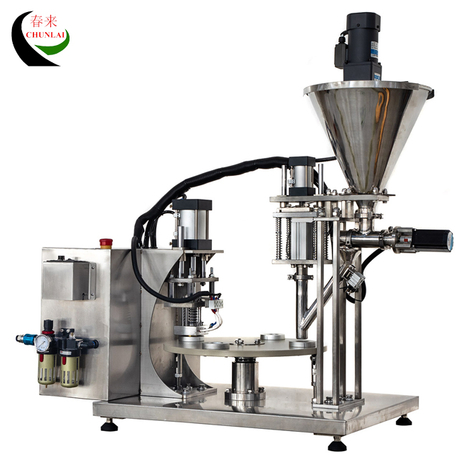

MS-1 Semi Automatic Rotary Type Coffee Capsule Filling Sealing Machine with manual drive without filling station. The cup sealer is characterized by compact design and a small capacity, which is about 300-400 cups/hour. Machine is made with a rotating table, filling, pre-cut aluminum lid applying station, sealing station.
The cups are manually inserted and removed from the rotating table.
It also can be customized with filling products including liquid, paste, powdered, granule material in round, oval, square or rectangular plastic containers. Such as Yogurt, Milk, Cottage Cheese, Cheese and Dairy Products as well as Pasta Sauce, Bean Dips, Hummus, Salad Dressings, Desserts, Soups, Mayonnaise, Jelly, Pudding, Chocolate, Jam, Honey, Juice, Ketchup, butter, Cosmetic Cream, etc.
Model | MS-1 |
Production Capacity | 300-400 cups/hour |
Filling Range | 5-15g or customized |
Power | Single phase 220V, 110V, 50Hz/60Hz |
Power | 1 Kw |
Air consumption | 0.6 mз/min |
Dimension | 1000mm×600mm×1000mm |
Weight | 100Kg |
Machine Frame: Stainless Steel
Product contact part: 304 stainless steel
PLC: Mitsubishi
Cylinder: AirTac
Solenoid valve: Mindmand
Switch: IDEC
Turn rotary board automatically
Touch screen
Mixing tank
Double jacket tank
Color ribbon date printer for roll film
