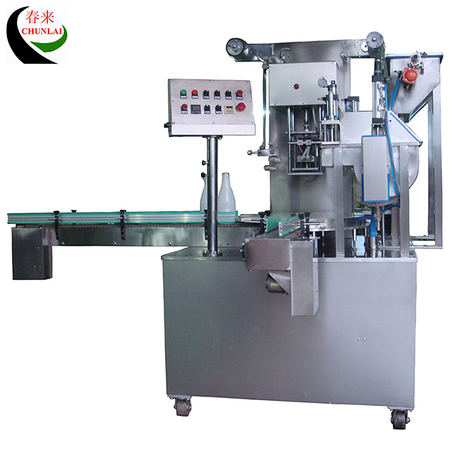

KIS-1800 Rotary Type Coconut Juice Bottle Filling Sealing Machine is suitable for the production of bottle filling and film heat sealing packing, such as agricultural chemicals, toilet detergent, bleach, juice, milk, yogurt and other products. The machine adopts PLC, pneumatic control elements, and intelligent digital display temperature control system. It has the characteristics of high sealing strength, good air tightness, and low failure rate. It is the first choice for enterprise automated assembly line production. It can connect with other related packing machines easily.
1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).
Operation Panel:
A-Type: Traditional Switches and Buttons for simple operation
B-Type: Touch Screen
Variable speed adjustment via speed controller arrange with inverter
Additional emergency stop switch for safety protection
No bottle no filling
Filling tank: level control
Blank Film Fixer: to calculate the film length of cup for saving the film cost
Model | KIS-1800 | |
Production Capacity | 1600-1800 canisters/hour | 3000-3600 canisters/hour |
Filling Range | 100-500ml or customized | |
Power | Single phase 220V, 3 phase 220V 3 phase 380V/400V/415V 50Hz/60Hz | |
Power | 1.5 Kw | 3 Kw |
Air consumption | 0.8 mз/min | 0.8 mз/min |
Dimension | 1500mm×1700mm×1650mm | 2100mm×2500mm×1750mm |
Weight | 500Kg | 750Kg |
Machine Frame: Stainless Steel
Product contact part: 304 stainless steel
PLC: Mitsubishi
Cylinder: AirTac
Solenoid valve: Mindmand
Switch: IDEC
Operation panel: Touch Screen
Filling tank: CIP washing ball
Safety protection: it is optional function, it make up by plexi glass plates, aluminium and stainless steel, has safety switches which protect the operator.
